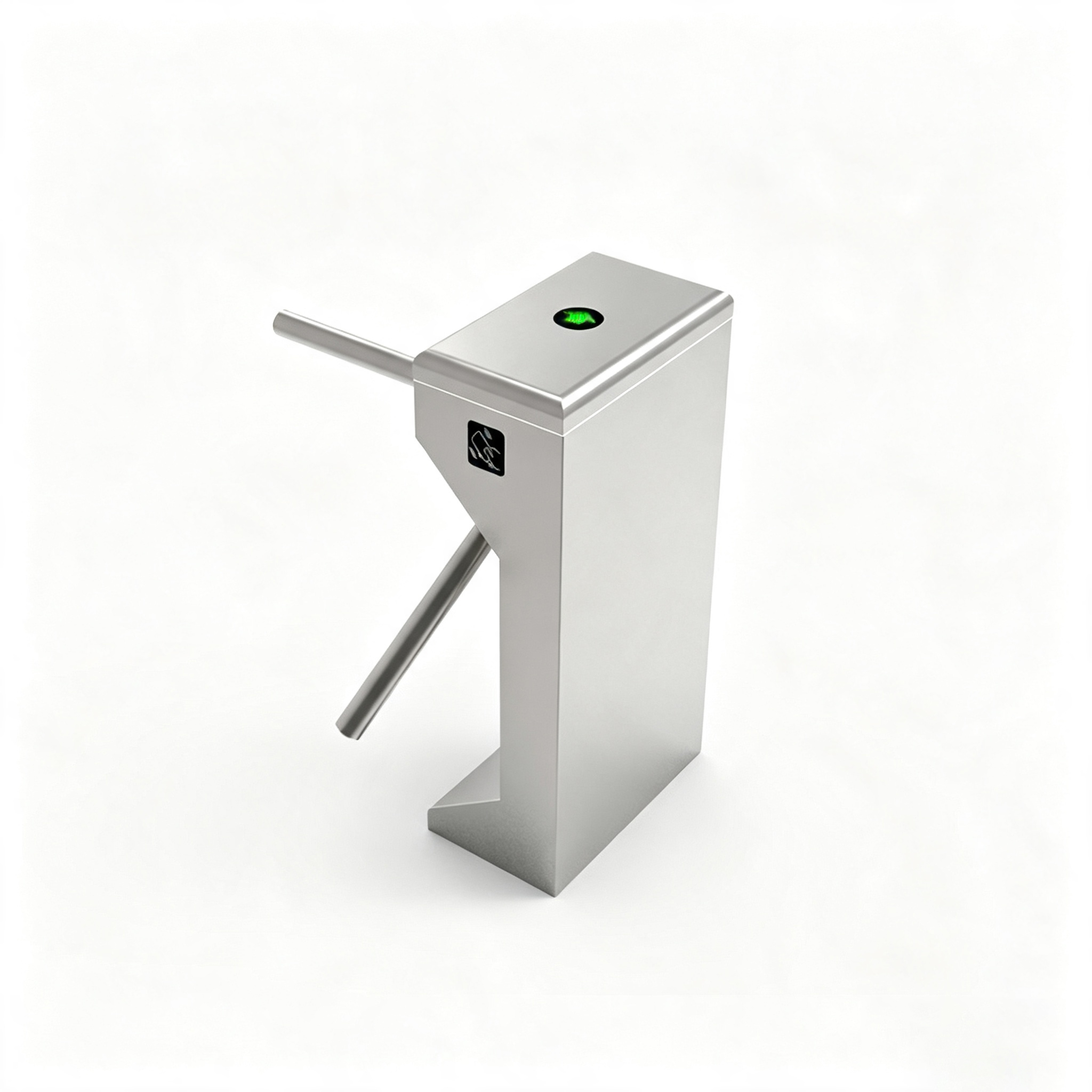

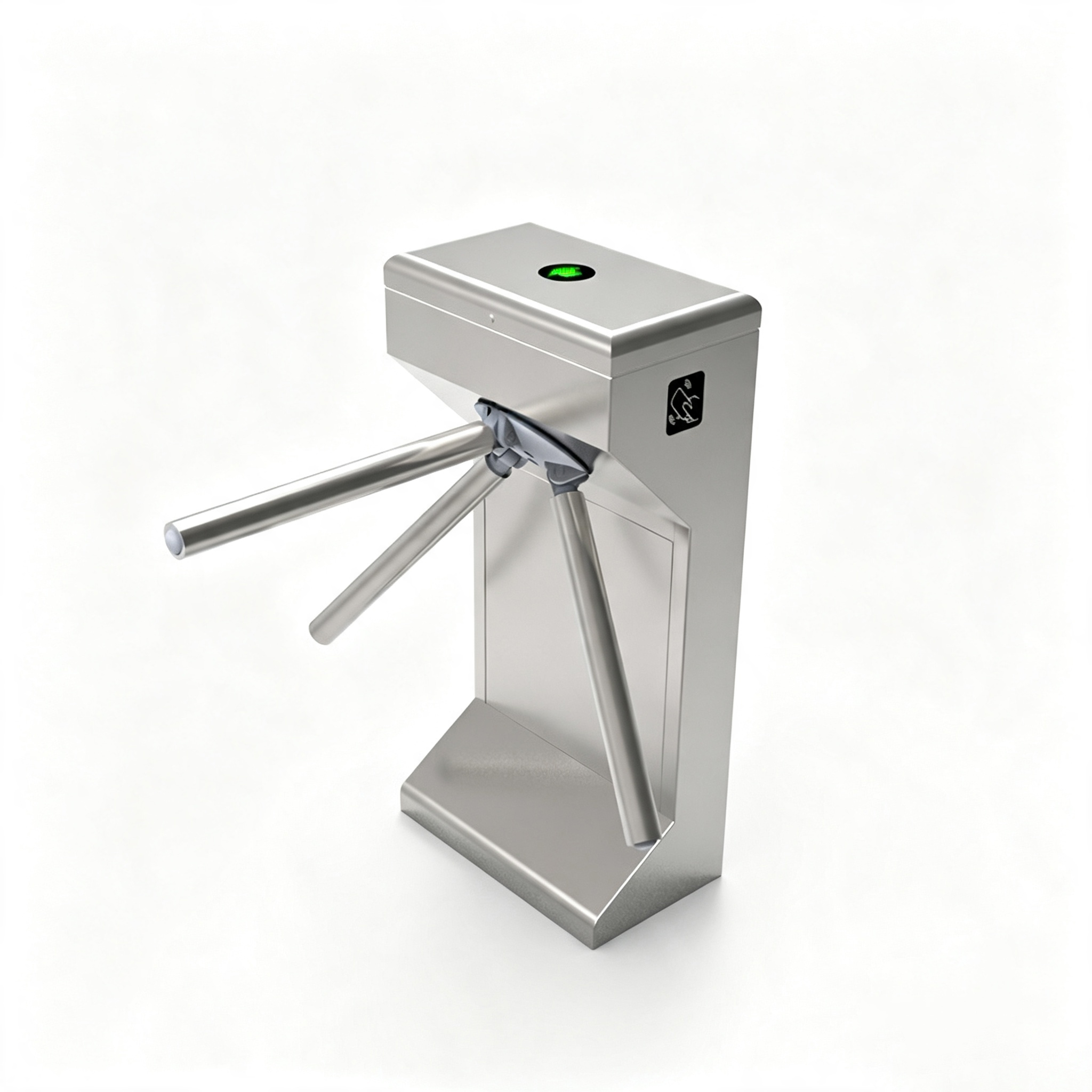

Smart Multi-Auth Vertical Column Tripod Turnstile
Enlarge
VERTICAL COLUMN TRIPOD TURNSTILES · EASCO FACTORY DIRECT

Smart Multi-Auth Vertical Column Tripod Turnstile

The EAS-V200 Pro combines modern compact columnar form with advanced smart access credentials. Equipped with facial recognition, mobile QR ticket scanner, and RFID reader, it provides seamless contactless access verification in corporate buildings, member clubs, and institutional entryways.

Request a Quote Talk on WhatsApp
✓ Shenzhen Factory Direct Supply
✓ OEM / ODM Custom Dimension & Color
✓ 3-Year Warranty & Global Tech Support
550 - 600 mm
Passage Width
SUS304 Stainless Steel
Chassis Material
40 persons/min
Throughput
10M Cycles MCBF
Duty Life

Precision Mechanical Design Built for Millions of Cycles

Every EASCO EAS-V200 Pro tripod turnstile is assembled with laser-cut 304 stainless steel and precision CNC components. Designed to manage intense pedestrian flow during peak hours, it incorporates automatic arm-dropping for emergency egress and high-precision damping for smooth, noise-free operation.

Precision Mechanical Design Built for Millions of Cycles

Tailored to Match Your Facility Architecture

Whether you require standard satin brushed 304/316 stainless steel for industrial durability or luxury vacuum PVD electroplated titanium finishes for high-end corporate lobbies, EASCO provides full OEM/ODM manufacturing.

Tailored to Match Your Facility Architecture

Smart Multi-Auth Vertical Column Tripod Turnstile — Technical Specifications

EAS-V200 Pro
420 x 330 x 980 mm (Customizable size, color, function)
304 Stainless Steel / PVD Electroplating / Cold-Rolled Paint
550 - 600 mm
500 mm
Bi-directional (2-Way)
AC 100-240V, 50/60Hz, 60W
High-Precision Brushless Servo Motor
TCP/IP, Wiegand, RS485, Relay Output
Gigabit Ethernet, RS485
40 persons/min
-25°C to +75°C
Facial Recognition + RFID Card + QR Code + Attendance + IR Sensor
VIP Commercial Clubs, Executive Offices, Smart Campuses, Gyms
Auto Arm-Drop on Fire Alarm / Power Off
CE, FCC, RoHS, ISO9001:2015

Frequently Asked Questions About EAS-V200 Pro

Technical guidance, installation support, and ordering information directly from our factory engineers.

Yes. EASCO turnstiles feature standard dry-contact relay inputs, Wiegand interfaces, and RS485/TCP-IP communication. They easily connect with all leading RFID access controllers, biometric terminals, barcode ticketing, and visitor management software.

The system has an automatic fail-safe drop-arm mechanism. In the event of a power outage or fire alarm trigger, the top arm automatically drops down to provide a completely free, unobstructed emergency exit route compliant with international fire safety standards.

Yes. As direct manufacturers from our Shenzhen facility, we support custom chassis dimensions, specialized bracket mounts, laser-cut client logos, PVD titanium gold/black finishes, and outdoor anti-corrosion marine 316 stainless steel upgrades.

Standard models are produced in 5 to 7 business days. Custom OEM/ODM orders typically ship in 12 to 18 business days. We provide global air cargo and sea freight door-to-door delivery with export wooden crating.

Get a Direct Factory Quote for EAS-V200 Pro

Contact our Shenzhen engineering team for wholesale volume pricing, CAD drawings, wiring diagrams, and project model selection.
