Standard TCP/IP Passage Bridge Tripod Turnstile
Enlarge
BRIDGE TRIPOD TURNSTILES · EASCO FACTORY DIRECT

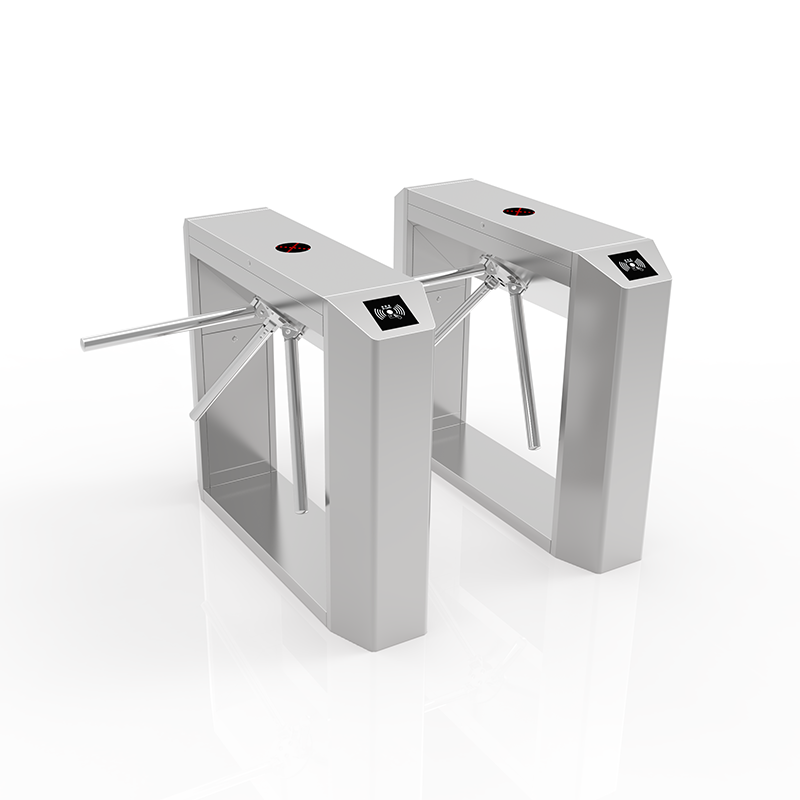

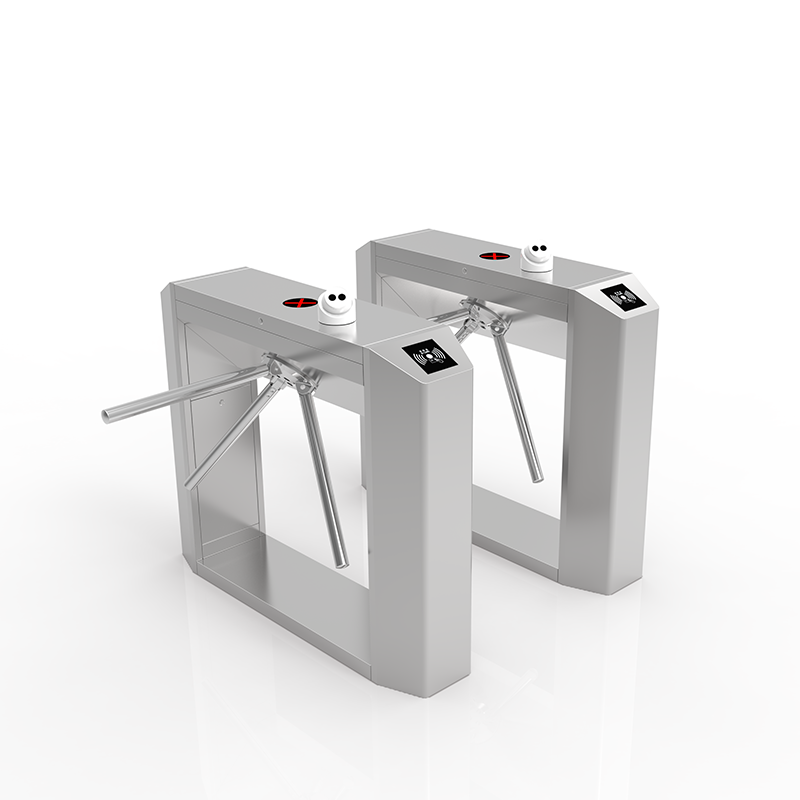

Standard TCP/IP Passage Bridge Tripod Turnstile

The EAS-B400 Bridge Tripod Turnstile features a streamlined aesthetic cabinet with full-perimeter 304 stainless steel. Powered by a responsive 50W DC motor, it offers instantaneous arm positioning, quiet pass-through, and universal dry-contact compatibility for any third-party access control system.

Request a Quote Talk on WhatsApp
✓ Shenzhen Factory Direct Supply
✓ OEM / ODM Custom Dimension & Color
✓ 3-Year Warranty & Global Tech Support
550 - 600 mm
Passage Width
SUS304 Stainless Steel
Chassis Material
35 persons/min
Throughput
10M Cycles MCBF
Duty Life

Precision Mechanical Design Built for Millions of Cycles

Every EASCO EAS-B400 tripod turnstile is assembled with laser-cut 304 stainless steel and precision CNC components. Designed to manage intense pedestrian flow during peak hours, it incorporates automatic arm-dropping for emergency egress and high-precision damping for smooth, noise-free operation.

Precision Mechanical Design Built for Millions of Cycles

Tailored to Match Your Facility Architecture

Whether you require standard satin brushed 304/316 stainless steel for industrial durability or luxury vacuum PVD electroplated titanium finishes for high-end corporate lobbies, EASCO provides full OEM/ODM manufacturing.

Tailored to Match Your Facility Architecture

Standard TCP/IP Passage Bridge Tripod Turnstile — Technical Specifications

EAS-B400
1200 x 280 x 980 mm
304 Stainless Steel Housing
550 - 600 mm
500 mm
Bi-directional / Dual-flow control
AC 110V/220V, 50W
Precision DC Motor Drive
Standard Dry Contact Signal
TCP/IP, RS485
35 persons/min
-20°C to +70°C
RFID, Barcode, Proximity Card, Dry Contact
Corporate Headquarters, Government Agencies, Construction Sites
Auto Arm-Drop on Fire Alarm / Power Off
CE, FCC, RoHS, ISO9001:2015

Frequently Asked Questions About EAS-B400

Technical guidance, installation support, and ordering information directly from our factory engineers.

Yes. EASCO turnstiles feature standard dry-contact relay inputs, Wiegand interfaces, and RS485/TCP-IP communication. They easily connect with all leading RFID access controllers, biometric terminals, barcode ticketing, and visitor management software.

The system has an automatic fail-safe drop-arm mechanism. In the event of a power outage or fire alarm trigger, the top arm automatically drops down to provide a completely free, unobstructed emergency exit route compliant with international fire safety standards.

Yes. As direct manufacturers from our Shenzhen facility, we support custom chassis dimensions, specialized bracket mounts, laser-cut client logos, PVD titanium gold/black finishes, and outdoor anti-corrosion marine 316 stainless steel upgrades.

Standard models are produced in 5 to 7 business days. Custom OEM/ODM orders typically ship in 12 to 18 business days. We provide global air cargo and sea freight door-to-door delivery with export wooden crating.

Get a Direct Factory Quote for EAS-B400

Contact our Shenzhen engineering team for wholesale volume pricing, CAD drawings, wiring diagrams, and project model selection.
