Smart Multi-Verification Bridge Tripod Turnstile
Enlarge
BRIDGE TRIPOD TURNSTILES · EASCO FACTORY DIRECT

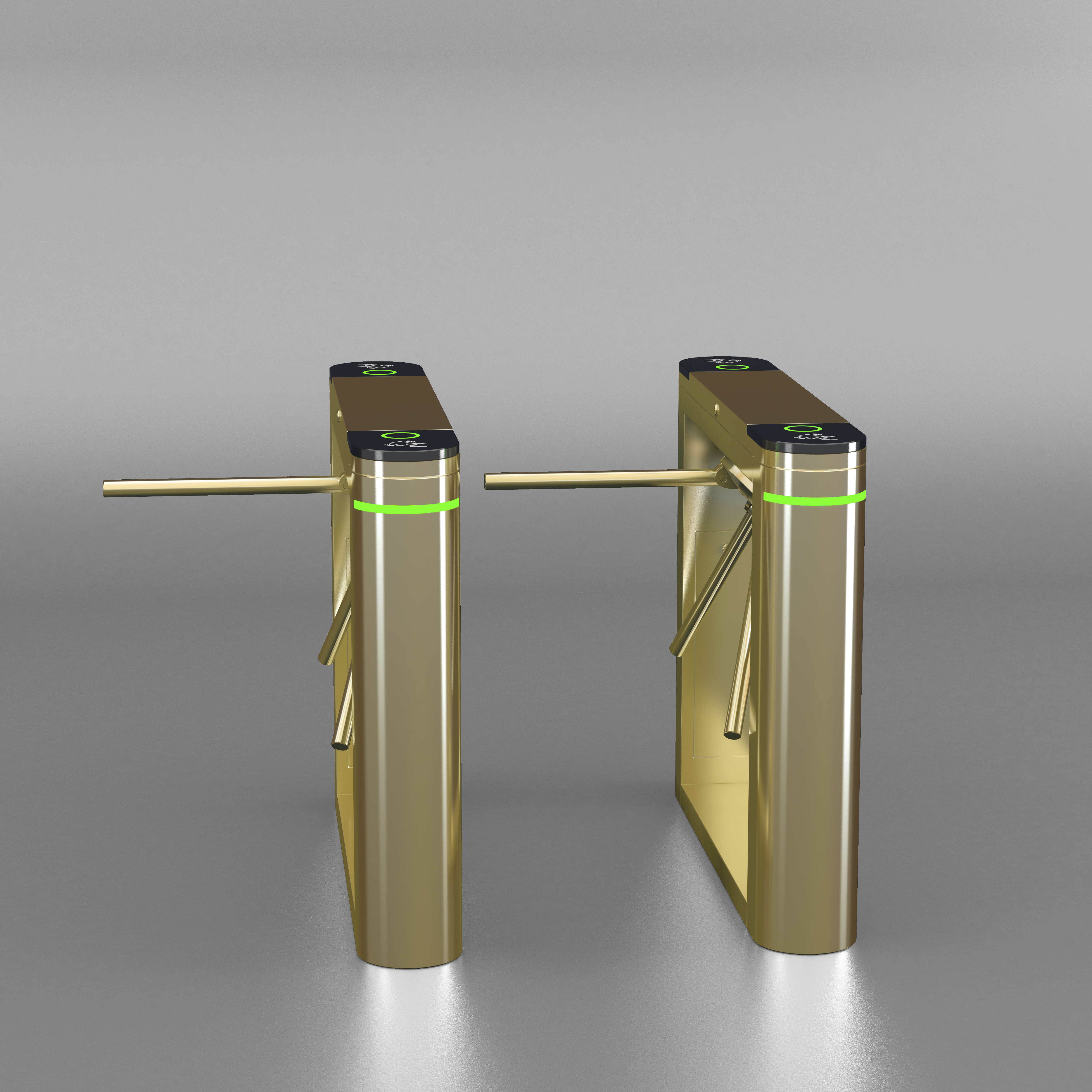

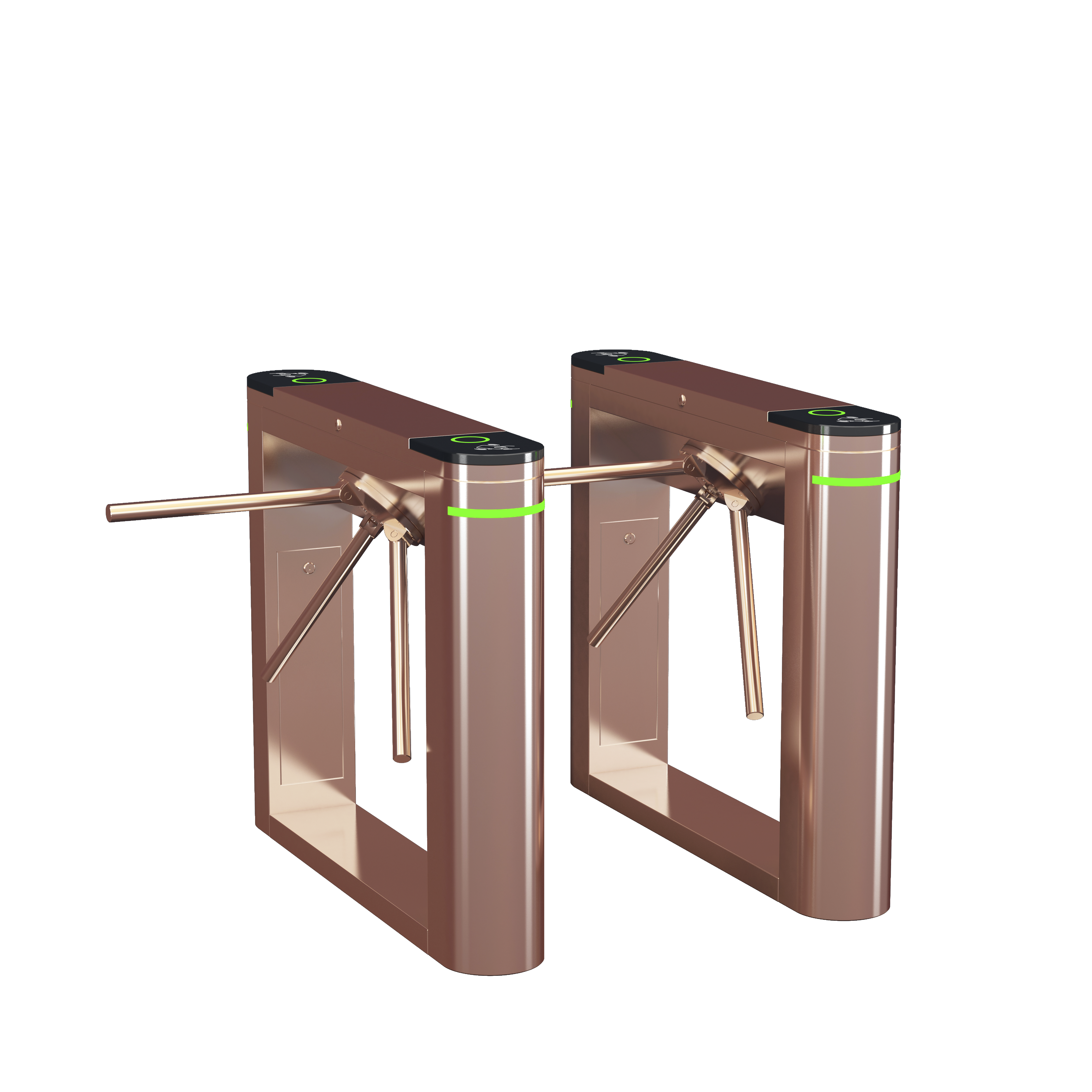

Smart Multi-Verification Bridge Tripod Turnstile

The EAS-B500 Pro is an ultra-premium multi-authentication turnstile system. It supports high-speed facial recognition with liveness detection, QR mobile ticketing, RFID cards, and infrared passenger tracking. Available in natural stainless steel, vacuum PVD electroplating (Gold / Black / Titanium), and architectural powder-coated finishes.

Request a Quote Talk on WhatsApp
✓ Shenzhen Factory Direct Supply
✓ OEM / ODM Custom Dimension & Color
✓ 3-Year Warranty & Global Tech Support
550 - 600 mm
Passage Width
SUS304 Stainless Steel
Chassis Material
45 persons/min
Throughput
10M Cycles MCBF
Duty Life

Precision Mechanical Design Built for Millions of Cycles

Every EASCO EAS-B500 Pro tripod turnstile is assembled with laser-cut 304 stainless steel and precision CNC components. Designed to manage intense pedestrian flow during peak hours, it incorporates automatic arm-dropping for emergency egress and high-precision damping for smooth, noise-free operation.

Precision Mechanical Design Built for Millions of Cycles

Tailored to Match Your Facility Architecture

Whether you require standard satin brushed 304/316 stainless steel for industrial durability or luxury vacuum PVD electroplated titanium finishes for high-end corporate lobbies, EASCO provides full OEM/ODM manufacturing.

Tailored to Match Your Facility Architecture

Smart Multi-Verification Bridge Tripod Turnstile — Technical Specifications

EAS-B500 Pro
1200 x 280 x 980 mm (Customizable length & width)
304 Stainless Steel / PVD Vacuum Electroplating / Cold-rolled Baking Paint
550 - 600 mm
500 mm
Bi-directional 2-Way Flow
AC 100-240V 50/60Hz, 80W Peak
Intelligent Brushless Servo Motor with Optical Encoder
Wiegand 26/34, TCP/IP, Relay, RS485
TCP/IP Network Interface & Open API
45 persons/min
-25°C to +75°C
Face Recognition + RFID Card + QR Code + Attendance + IR Sensor
Smart Commercial Malls, Financial Centers, Airport Terminals, Tech Parks
Auto Arm-Drop on Fire Alarm / Power Off
CE, FCC, RoHS, ISO9001:2015

Frequently Asked Questions About EAS-B500 Pro

Technical guidance, installation support, and ordering information directly from our factory engineers.

Yes. EASCO turnstiles feature standard dry-contact relay inputs, Wiegand interfaces, and RS485/TCP-IP communication. They easily connect with all leading RFID access controllers, biometric terminals, barcode ticketing, and visitor management software.

The system has an automatic fail-safe drop-arm mechanism. In the event of a power outage or fire alarm trigger, the top arm automatically drops down to provide a completely free, unobstructed emergency exit route compliant with international fire safety standards.

Yes. As direct manufacturers from our Shenzhen facility, we support custom chassis dimensions, specialized bracket mounts, laser-cut client logos, PVD titanium gold/black finishes, and outdoor anti-corrosion marine 316 stainless steel upgrades.

Standard models are produced in 5 to 7 business days. Custom OEM/ODM orders typically ship in 12 to 18 business days. We provide global air cargo and sea freight door-to-door delivery with export wooden crating.

Get a Direct Factory Quote for EAS-B500 Pro

Contact our Shenzhen engineering team for wholesale volume pricing, CAD drawings, wiring diagrams, and project model selection.
